Low Loss And High Efficiency Complete Line 9 Strips Razor Wire Machine
The equipment is specially designed for the production of razor wire.The main technical parameters of the razor wire machine: The machine consists of two wire coiling machines and a main machine that can punch and cut nine strips. Its perfect embodiment: high efficiency, can produce steel belt 80kgs per hour. Low loss, the raw material loss of the old model is 40%, while the type is reduced to 15%.
Dimensions:
Wire coiling machine: length 1.3mX width 0.7mX height 1.1m
Main machine (punching machine): length 1.1mX width 0.85mX height 2.0m
Collecting machine: length 1.4mX width 0.75mX height 1.0m
Equipment after sales service:
1. The warranty period of the whole machine is 2 years. The electrical parts of the equipment are maintained for life. The warranty does not include vulnerable parts (abrasive tools) and man-made damage.
2. If the customer equipment fails, our company will immediately give a clear reply when receiving the call from the user. If still cannot solve the problem, will go to the customer company for maintenance.
3. After the warranty period, our company provides lifetime after-sales service support, and provides equipment accessories at the original price of accessories.

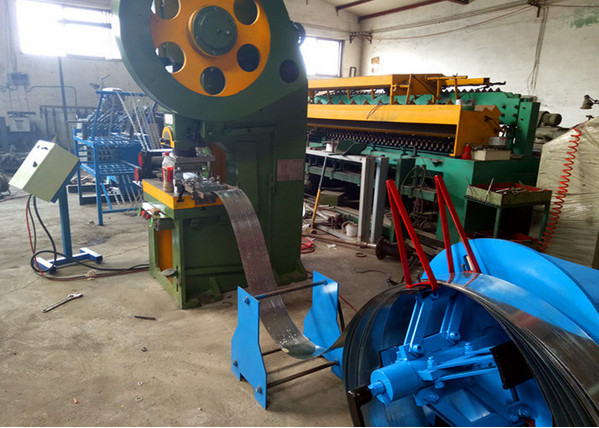

main punching machine
It mainly consists of punching machine ,mould ,decoiler and razor strip collector
| Type | 25T punching press (5 strips choice) | 40T punching press (9 strips choice) |
| Producing speed | 220-280m/h | 220-280m/h |
| Power | 2.2KW | 3.0KW |
| Rated Voltage | 380V,50HZ | 380V,50HZ |
| Overal Diamension | 1325MMX990MMX21400MM | 1600x1180x2310 |
| Weight | 1.9T | 3.2T |
Coiling Wire Machine
It mainly consists of wire pay off stand ,razor strip laying shelf,wire coiling machine and razor wire collector.
| Overal Diamension | L*W*H:1100mmx750mmx1200mm |
| Rated Voltage | 380V |
| Power | 1.5kw |
| Producing speed | 80kg/h |
| 80kg/h | 300kg |
